Gallery

Explore our portfolio of ship designs and engineering projects that showcase the breadth of our expertise and the quality of our work. From innovative concepts to fully realized vessels, our gallery highlights the diverse range of ship types, offshore structures, and custom solutions we've crafted over the years. Each project represents our commitment to precision, sustainability, and cutting-edge design.
Browse through our images to see how TD Naval Architect Pty Ltd brings visionary ideas to life, creating vessels that push the boundaries of technology and performance.

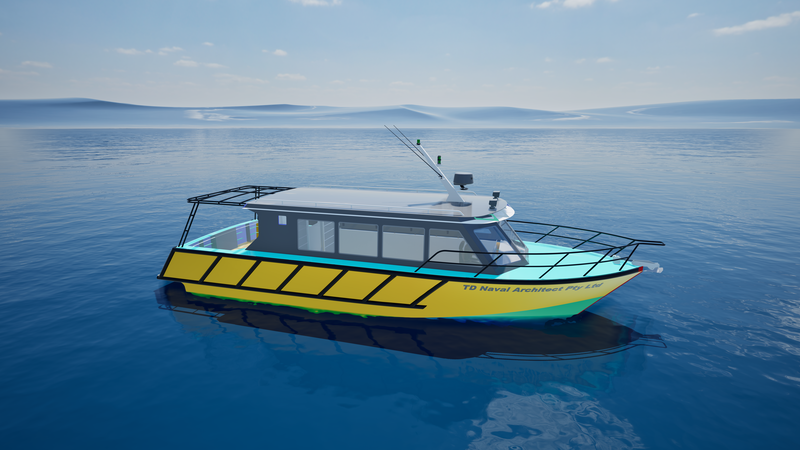

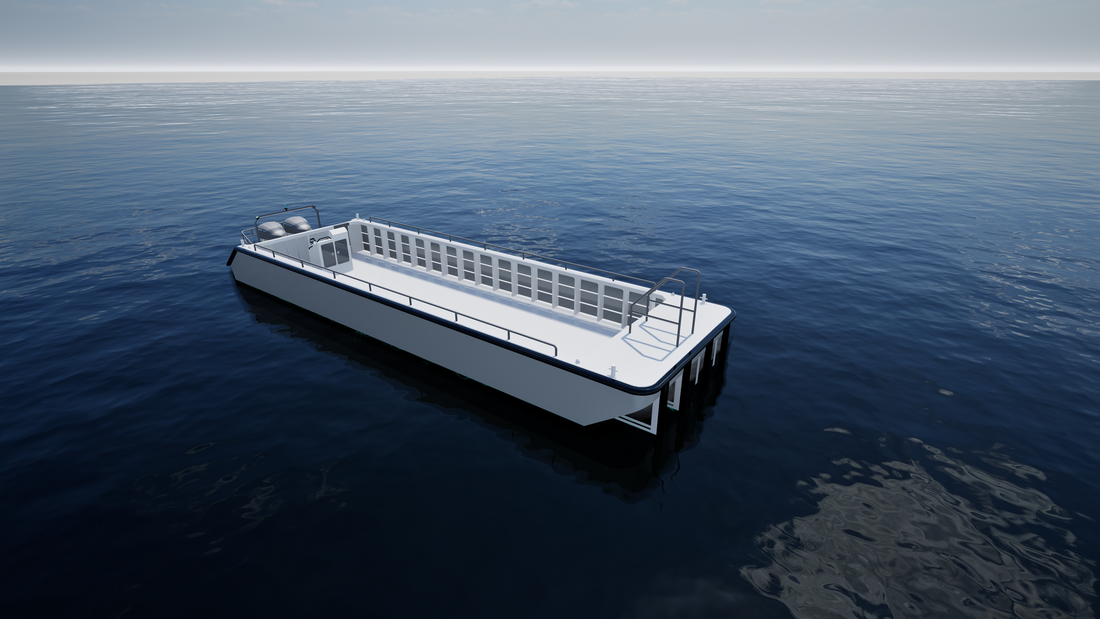

Work Boat
Specifications

• Length: 12.00 meters
• Width  :   3.50 meters
• Depth  :    1.30 meters
• Forward section fitted bump D fender
• 120lt fuel tank
• Standard Navigation Lights
• Service Category: 2C or 2D

• Warranty: Structural 5 years- Fittings 12 months

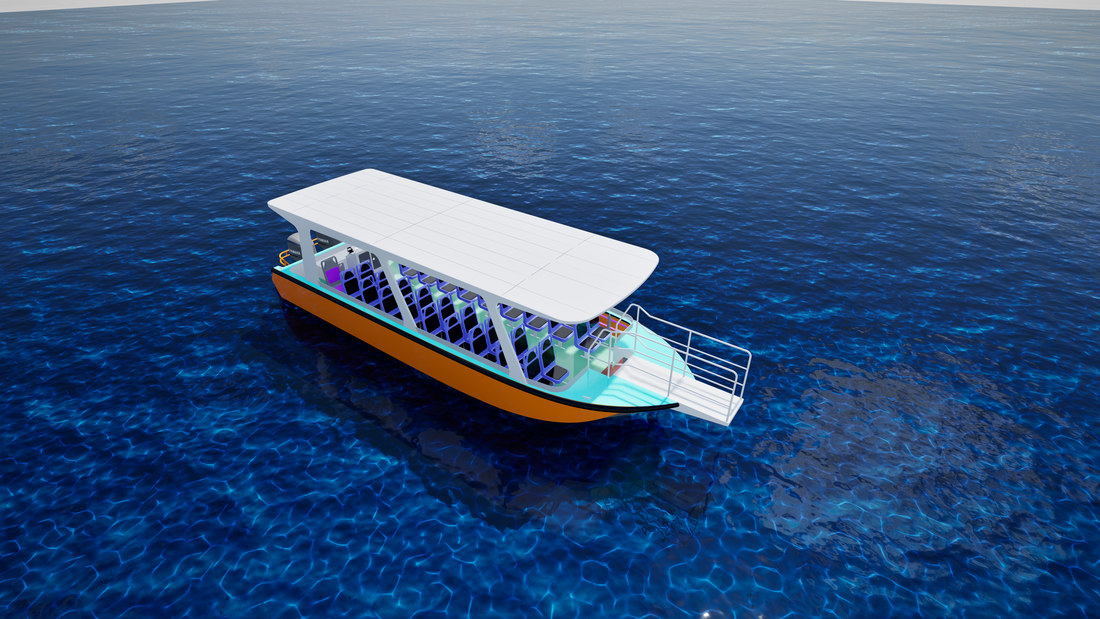

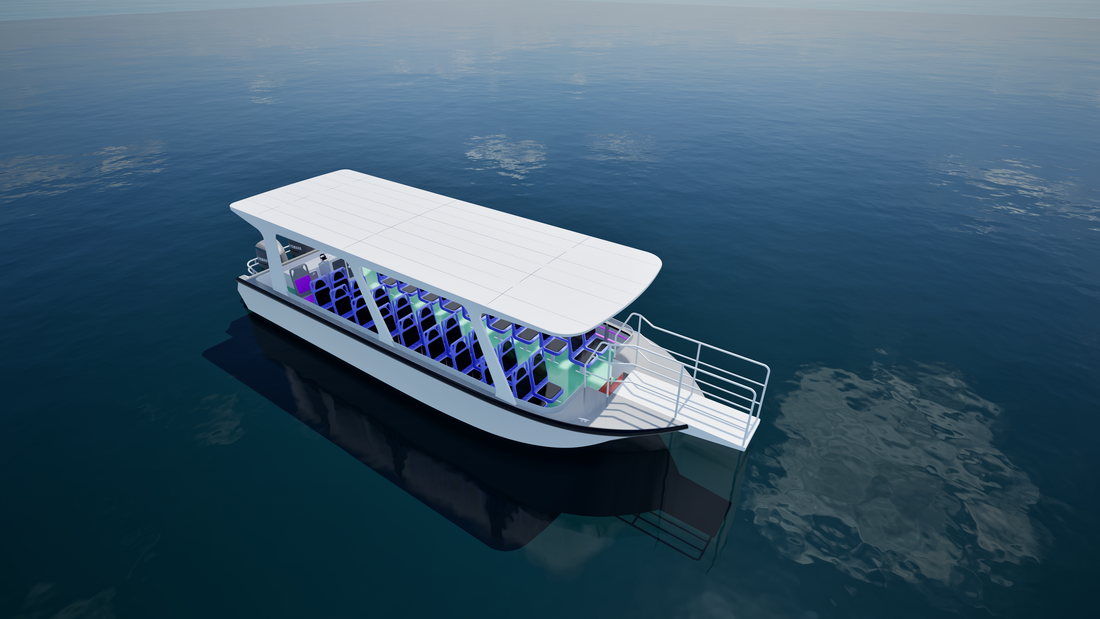

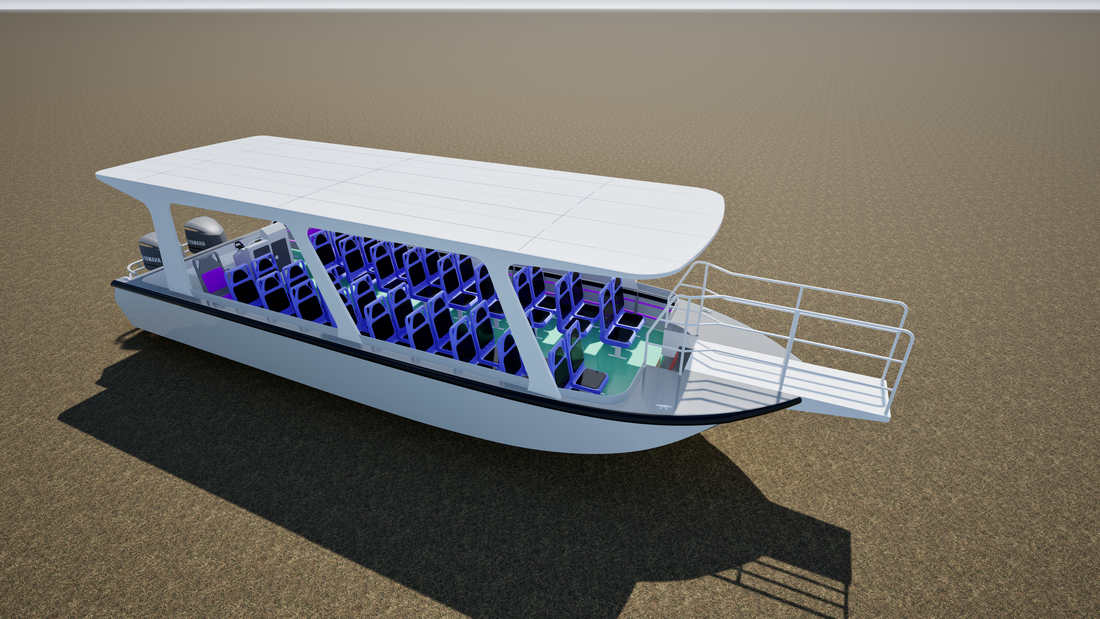

Tourist Boat
Specification

• Length: 12.00 meters
• Width  :  3.60 meters
• Draft    :  0.30 meters
• 130lt fuel tank
• Standard Navigation Lights
• Service Category: 1E

• Warranty: Structural 5 years- Fitting 12 months

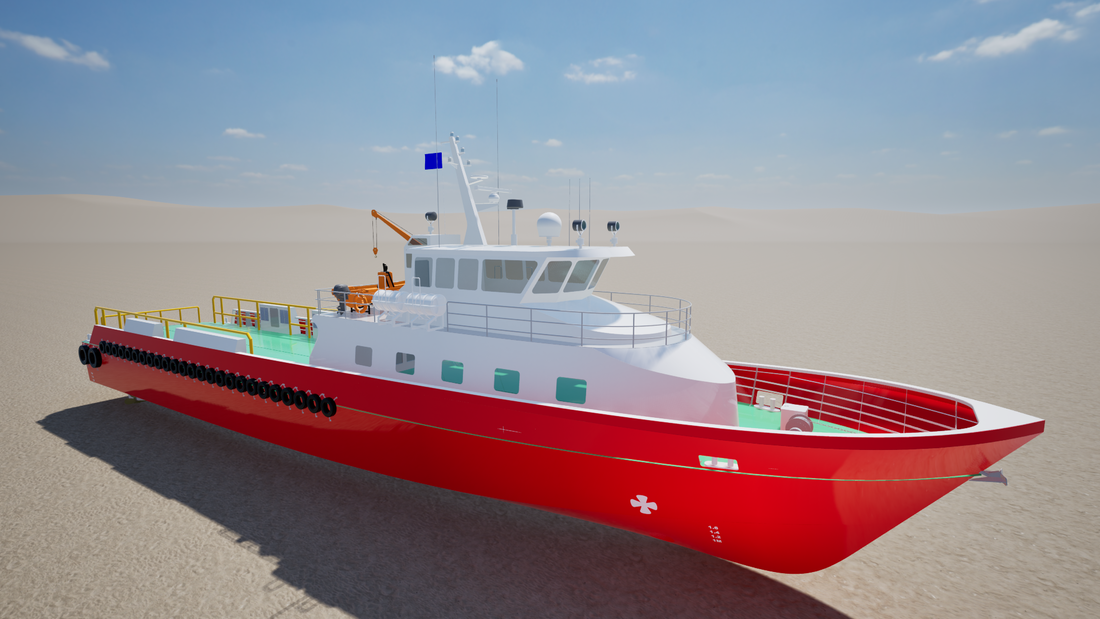

Crew Boat
Specification

• Length: 13.5 meters
• Width  :  3.75 meters
• Draft    :  0.60 meters
• 2000lt fuel tank
• Standard Navigation Lights
• Service Category: 1C

• Warranty: Structural 5 years- Fitting 12 months

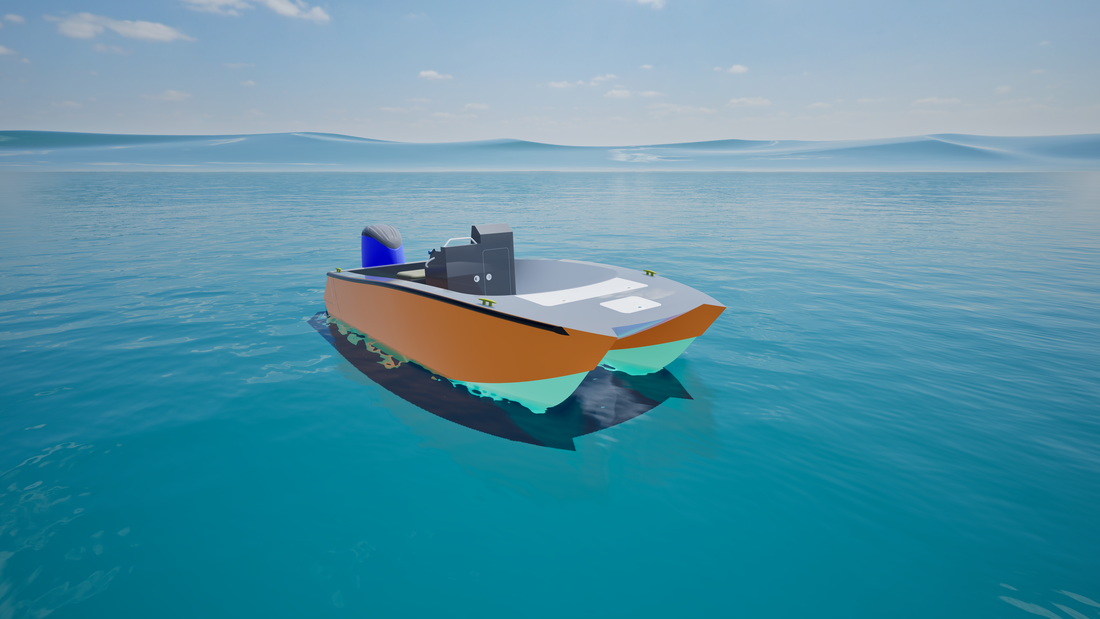

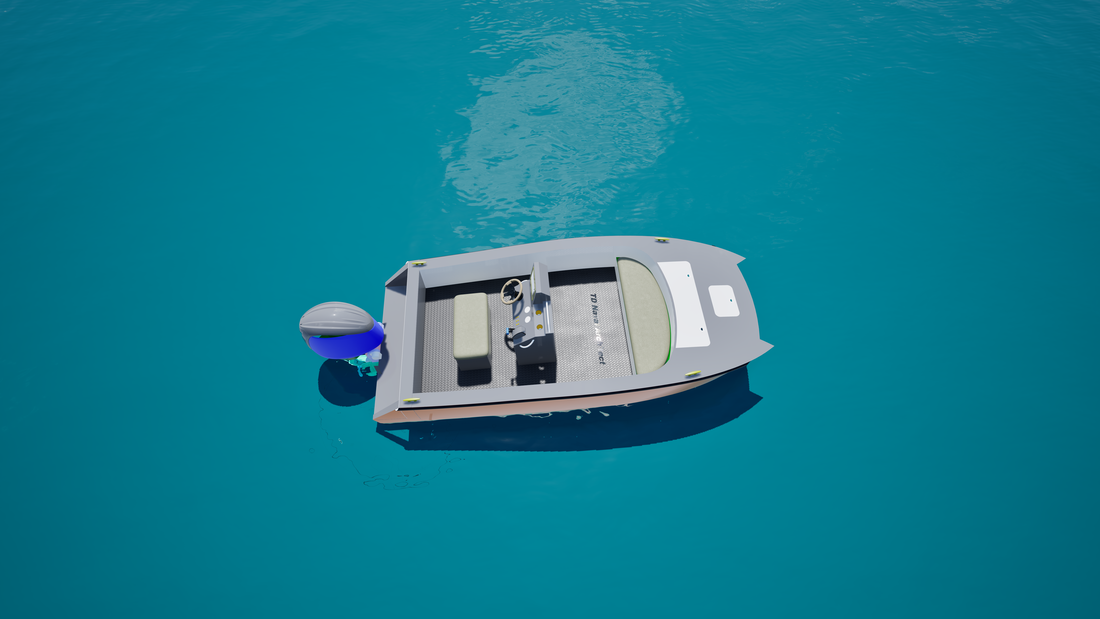

TD CAT 5000
Specification

• Length: 5.30 meters
• Width  : 2.28 meters
• Draft    :  0.30 meters
• 2x100lt fuel tank
• Standard Navigation Lights
• Survey: Non-survey
• Warranty: Structural 5 years- Fitting 12 months

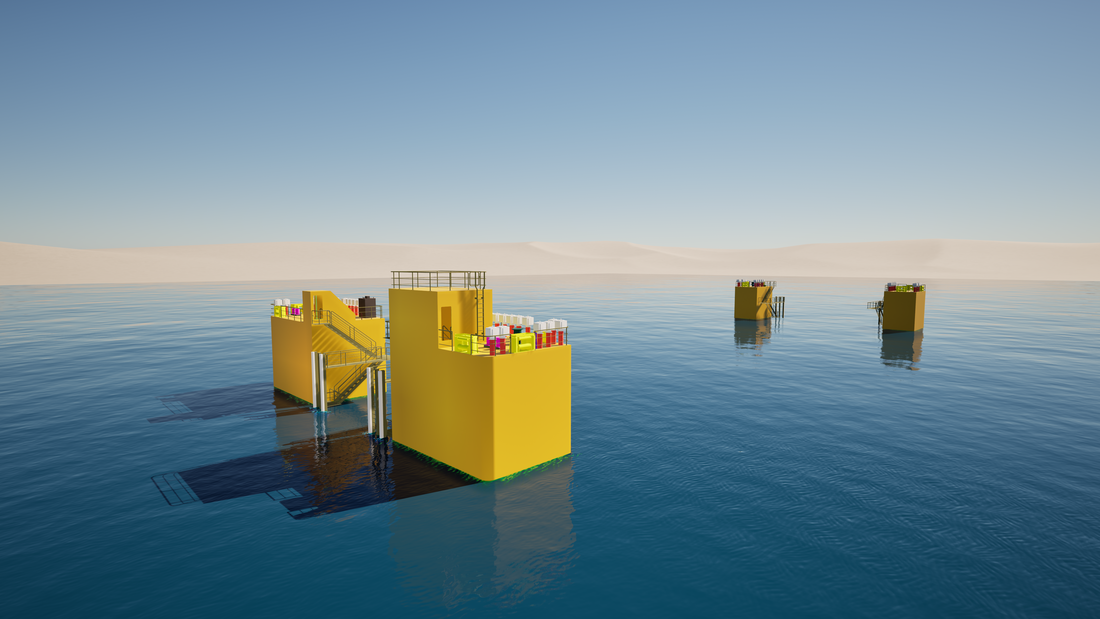

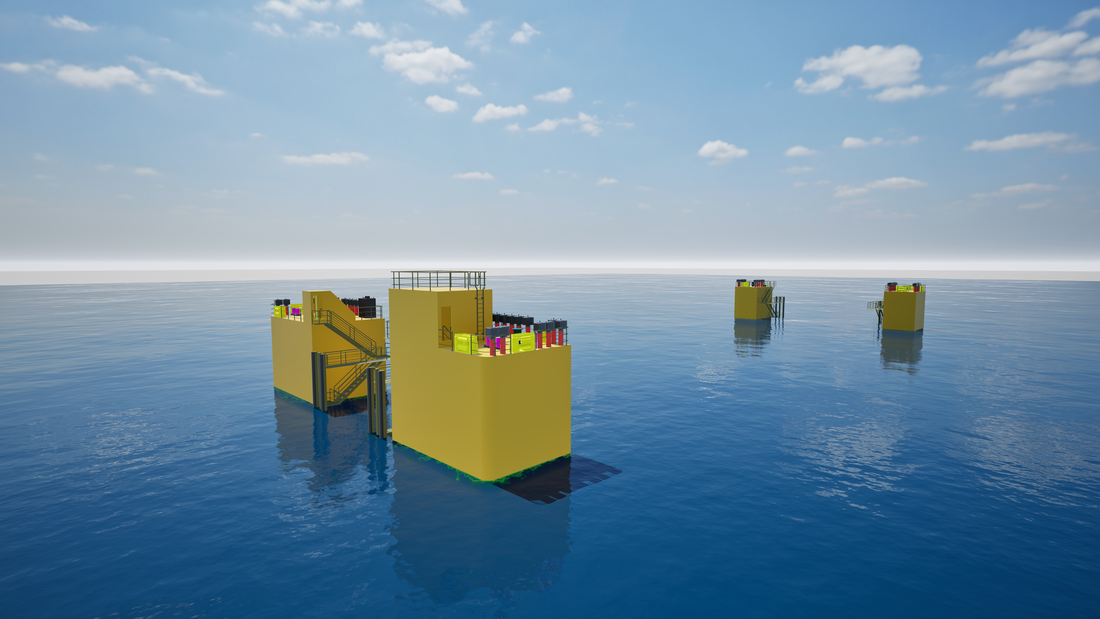

Semi-Submersible Barge
Specification

• Length: 120.0 meters
• Width  :  32.0 meters
• Max Dive Depth    :   13.5 meters
• Full Load Draft:  7.0 meters
• Dead weight: 23,000 T
• Generator: 2 x 300kW
• Air Compressor: 1 x 10m3/h
• Deck Load: 15T/m2
• Class: ABS-Unrestricted Service
• Warranty: Structural 5 years- Fitting 12 months

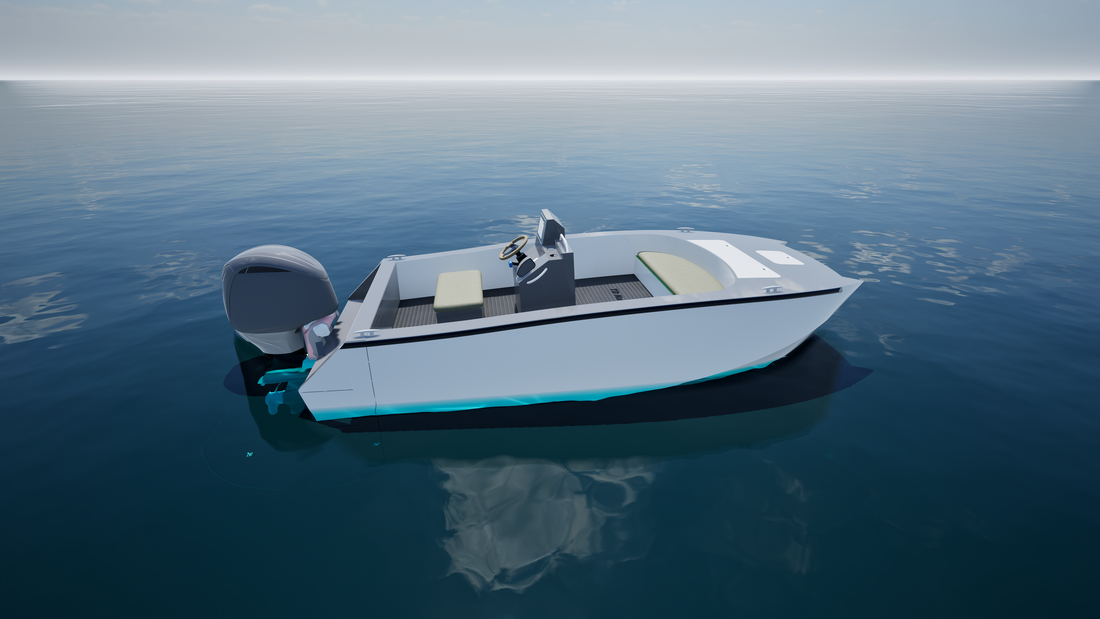

Fishing Charter Boat
Specification

• Length: 10.0 meters
• Width  :  3.00 meters
• Draft    :  0.40 meters
• 600lt fuel tank
• Standard Navigation Lights
• Service Category: 2C

• Warranty: Structural 5 years- Fitting 12 months

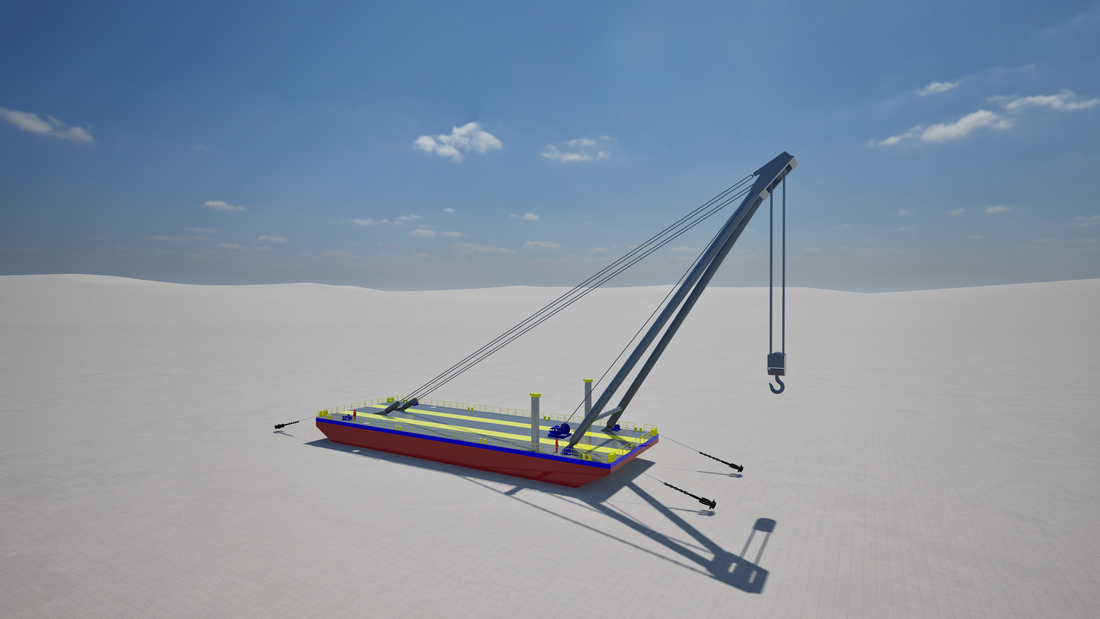

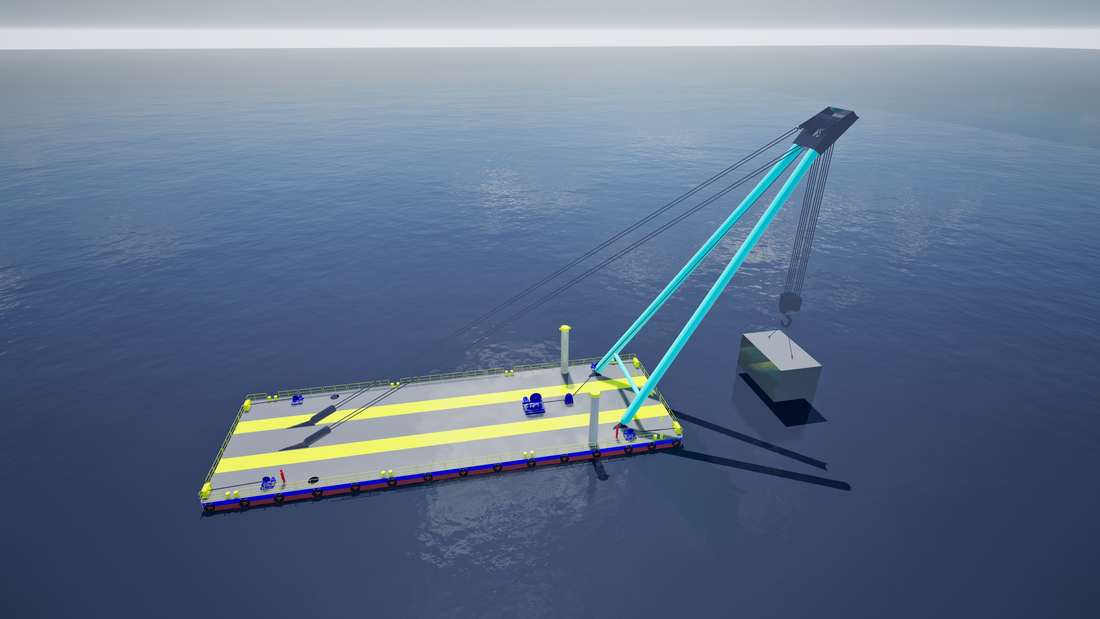

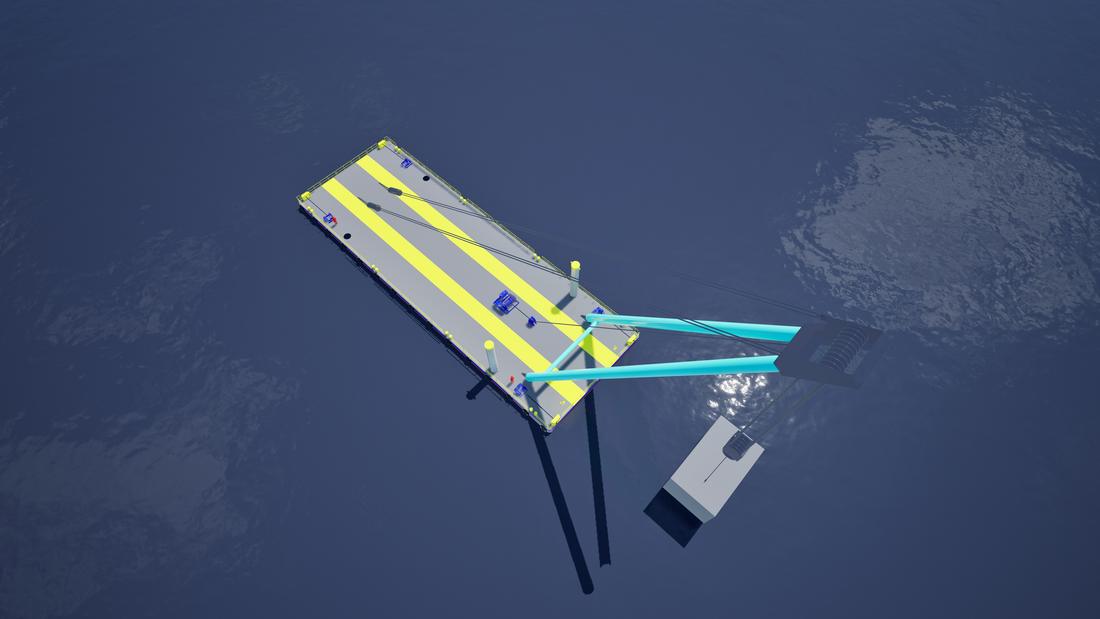

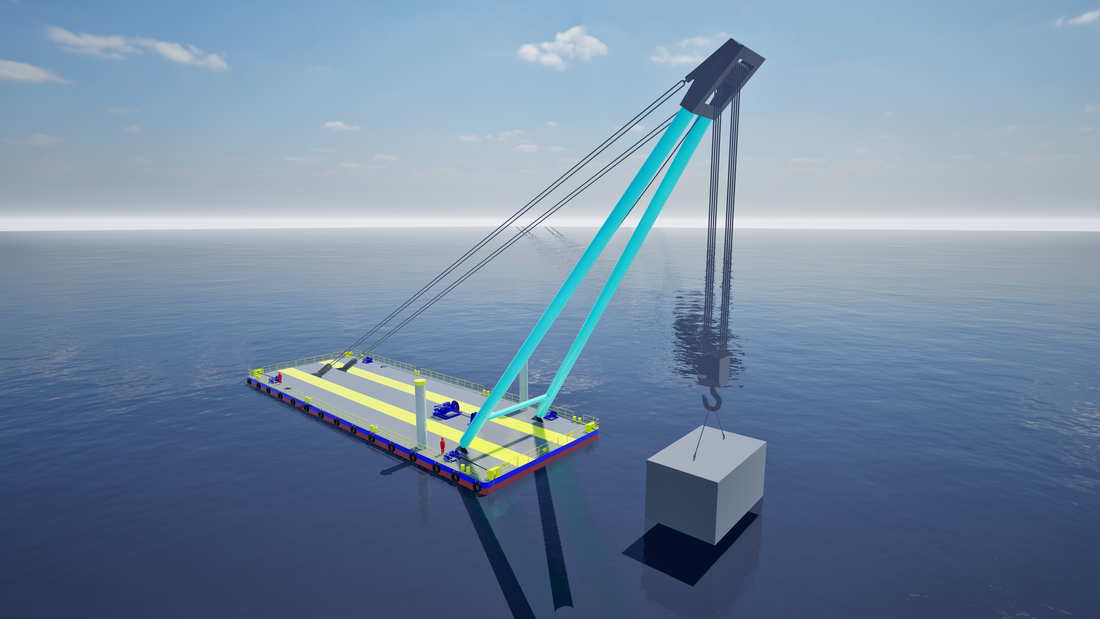

Ballastable Barge
Specification

• Length: 55.0 meters
• Width  :  20.0 meters
• Depth    :  4.3 meters
• Deck load:  20T/m2 meters
• Sheer Leg Lift Capacity: 700 T
• Winches: 4 x 7T hydraulic
• Class: ABS-Unrestricted Service
• Warranty: Structural 5 years- Fitting 12 months

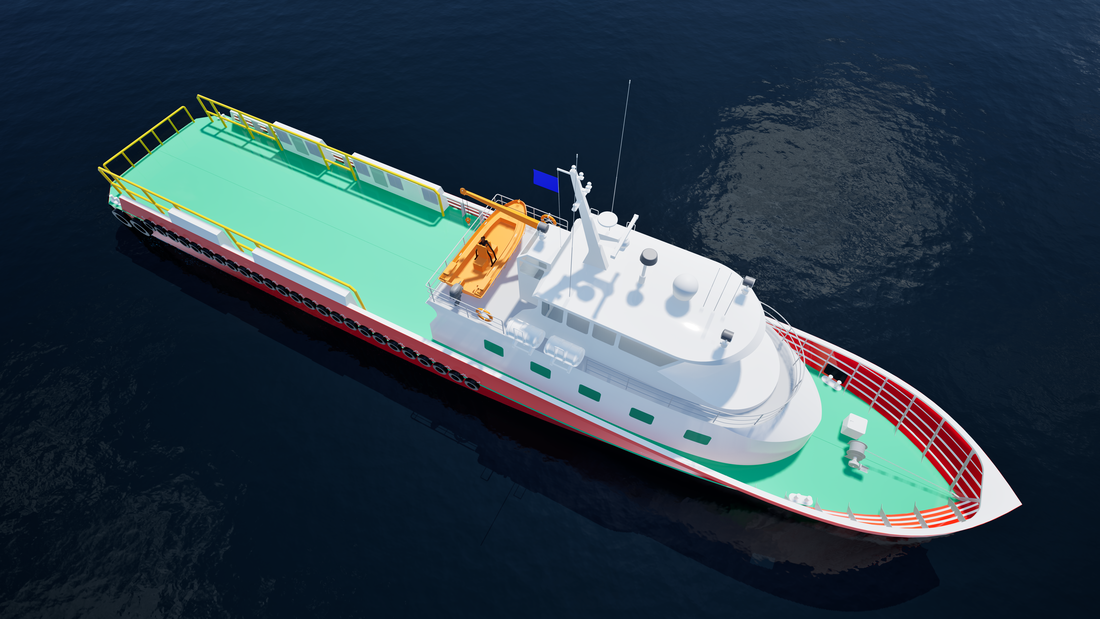

Multi Role Fishing Boat
Specification

• Length: 21.35 meters
• Beam  :   6.70 meters
• Depth    : 3.70 meters
• Total Power:  2x700 hp
• Speed:            23 knots
• Cray Tank:      5000 litres

• Fresh Water:  1600 litres
• Freezer:               4.7m3
• Fuel Tank: 2 x 3200 litres and 2 x 2200 litres
• Service Category: 2B or 3B
• Warranty: Structural 5 years- Fitting 12 months

Patrol Boat
Specification

• Length: 12.20 meters
• Beam  :   4.20 meters
• Depth    : 1.52 meters
• Total Power:  2x350 hp
• Speed:            37 knots
• Fuel Tank: 2 x 800 litres
• Fresh Water: 300 litres
• Service Category: 2C
• Warranty: Structural 5 years- Fitting 12 months

Patrol Boat
Specification

• Length: 8.60 meters
• Beam  :  2.64 meters
• Depth   : 1.52 meters
• Total Power:  2x250 hp
• Speed:            40 knots
• Fuel Tank: 2 x 350 litres
• Fresh Water: 100 litres
• Service Category: 2C
• Warranty: Structural 5 years- Fitting 12 months

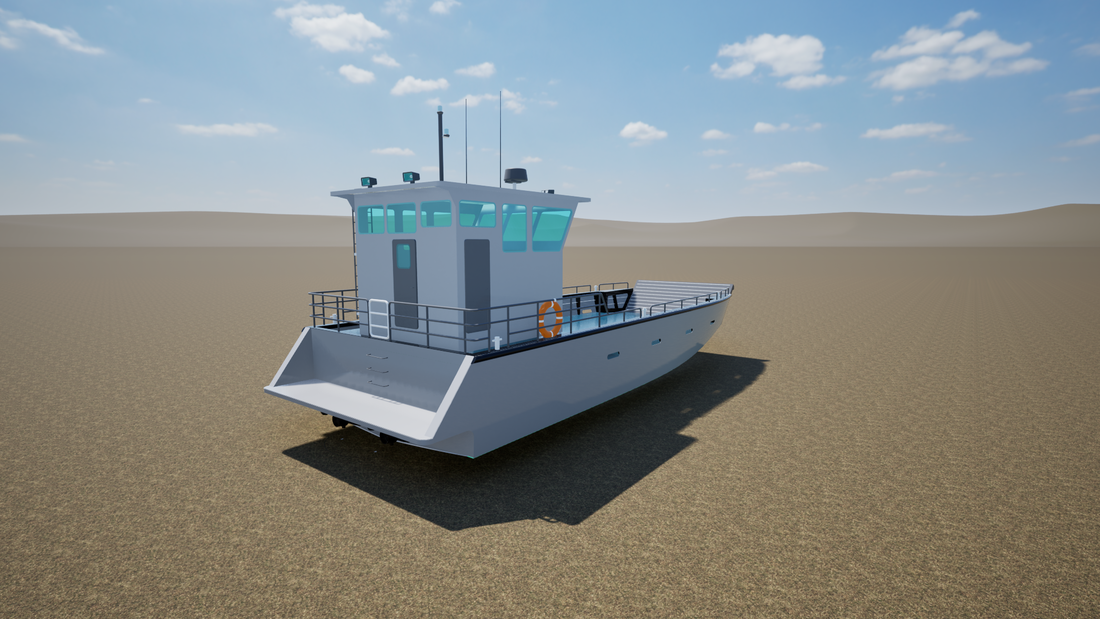

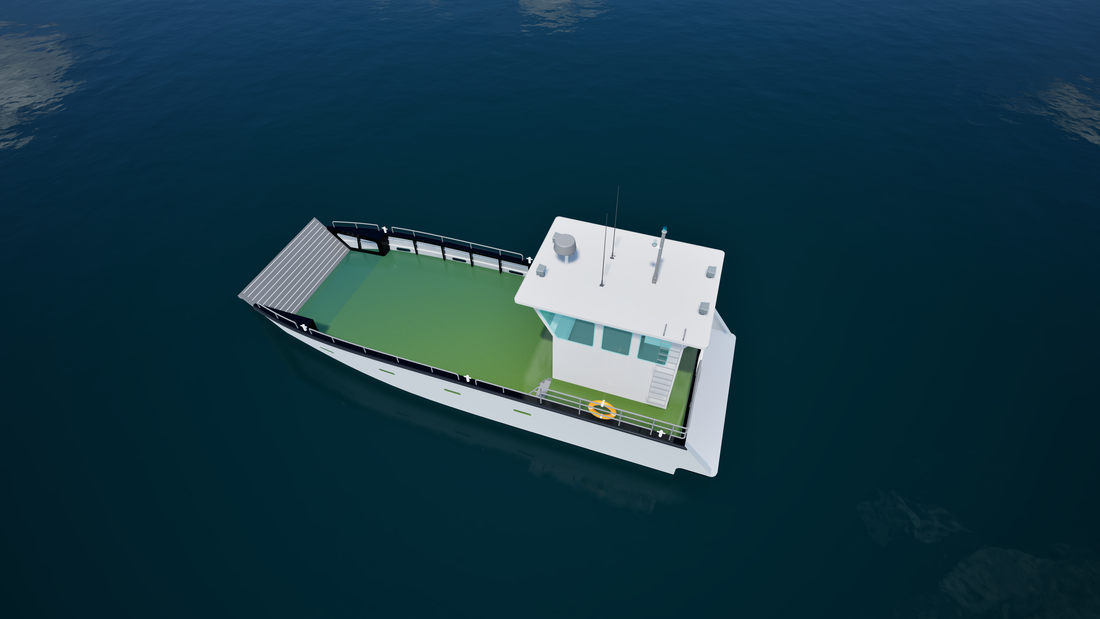

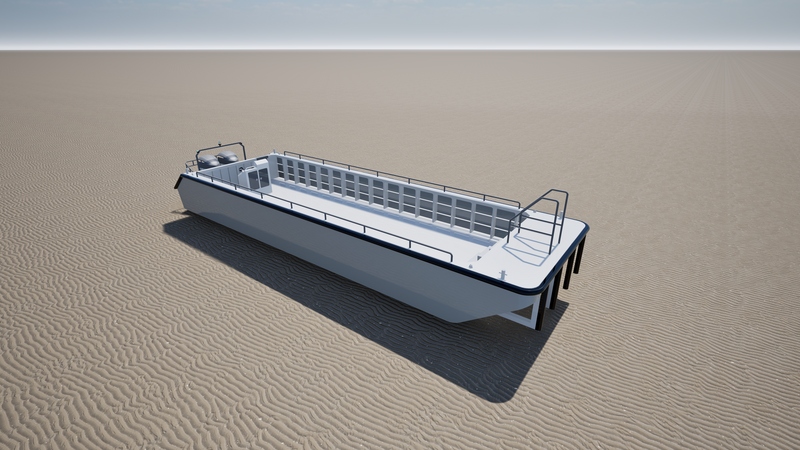

Landing Craft
Specification

• Length: 12.58 meters

• Beam  :  4.86 meters

• Depth   : 1.82 meters

• Total Power:  2x450 hp

• Speed:            20 knots

• Fuel Tank: 3600 litres
• Fresh Water: 200 litres
• Deck Cargo: 10 tones
• Service Category: 2C
• Warranty: Structural 5 years- Fitting 12 months
